MCE18 160° Wall-Mounted Motion and Sound Sensor for Installation in a 60mm Box

MACLEAN WALL-MOUNTED PIR MOTION AND SOUND SENSOR

High-quality wall-mounted sensor for installation in a 60mm junction box.
With our sensor, you’ll save on your electricity bills because the lights will turn on only when needed! Detection angle: 160°!
New generation—this infrared sensor features high stability, an attractive and practical design, easy installation, and a wide detection range. It automatically detects daylight and nighttime light. SMT technology is used, compliant with European standards. It is designed for automatic lighting control in homes, hotels, offices, stairwells, hallways, basements, restrooms, etc.

4 operating modes:
- ON - lamp/device turned on
- OFF - lamp/device turned off
- PIR - motion sensor mode - sensitivity adjustment (the lamp will turn on automatically when it detects motion)
- "+ MIC" - motion sensor and sound sensor mode (microphone) – sensitivity adjustment (the light turns on automatically when you knock on the door or say, for example, “I’m home” upon returning home at night, which significantly warms up the atmosphere and makes your home more cozy)
MCE18 Motion and Sound Sensor
The sensor is a device used to automatically control lighting or other electrical appliances. Installs in a Ø60 wall box in place of a standard light switch.
Wide range of configuration options:
- Control of the device’s operating time after activation, set using the “TIME” knob
- Control of the motion sensor’s sensitivity using the “SENS” knob
- Control of the sound sensor’s sensitivity using the “MIC” knob
- Adjustable operating mode based on ambient light intensity using the "LUX" knob

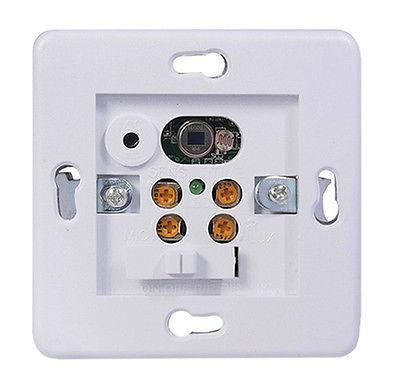

- The knobs are located under the device’s front panel to prevent accidental changes to the settings.

Specification:
- Operating voltage: 220–240 V AC / 50 Hz
- Detection angle: 160°
- Light sensitivity adjustment: 3–2000 LUX
- Detection range: 4–9 m (<24 °C)
- Motion detection speed: 0.6 ~ 1.5 m/s
- Maximum load: 500W (incandescent bulb)
- Adjustable noise sensitivity: 30 dB ~ 90 dB
- Operating temperature: -20 ~ +40 °C
- Operating humidity: <93% RH
- Mounting height: 1 m ~ 1.8 m
- Protection rating: IP20
- Built-in 2.5A fuse
- For use with incandescent bulbs only
- A neutral wire connection is required for the sensor to operate
- Lighting duration adjustment: 10 sec ± 3 s (min.); 7 min ± 2 min (max)
- Power consumption: 0.45 W (operating mode); 0.1 W (sleep mode)

Set contains:
- MCE18 Wall-Mounted Motion and Sound Sensor
- User Manual
- Manufacturer's Packaging

- High-quality wall-mounted sensor for installation in a 60mm box
- Detection angle: 160°
- This sensor will help you save on your electricity bills
- 4 operating modes
- Wide range of configuration options
- Attractive and practical design
- High stability
- Easy installation
