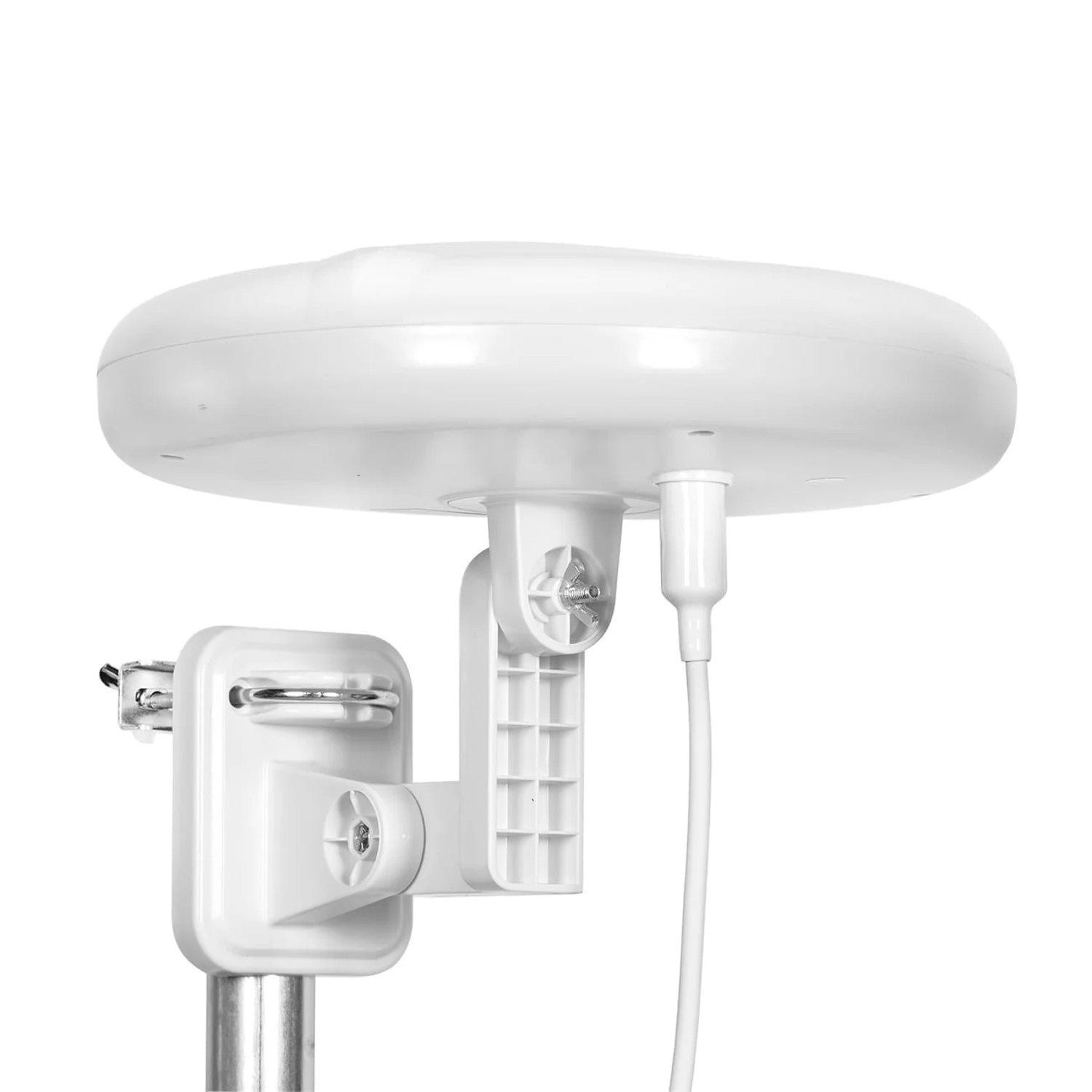

Digital360 4G LTE FM VHF UHF VA0024 Vayox Outdoor Antenna

Digital360 4G LTE FM VHF UHF Outdoor Antenna

EFFECTIVE OMNIDIRECTIONAL RECEPTION
The Digital360 antenna is a modern design that receives signals from any direction within a 360-degree range. As a result, it does not require precise calibration relative to the transmitter. The device supports the DVB-T/DVB-T2 digital standards and 4K and Full HD resolutions, including the MUX8 multiplex. The technology used allows for a reception range of up to 140 km from the broadcast station.
POWERFUL DIGITAL AMPLIFIER
Signal strength is ensured by a built-in digital amplifier with a gain of 30 dB. This circuit intelligently adjusts the gain level to prevailing conditions, ensuring a maximum output level of 105 dBuV. The antenna is designed to receive frequencies in the VHF and UHF bands, and its low self-noise level (<3 dB) guarantees a stable picture without “snow” on your TV.

CLEAR SIGNAL WITHOUT INTERFERENCE
To ensure the highest-quality reception, the device is equipped with an LTE anti-interference filter. It effectively suppresses GSM and 4G cellular signals that may interfere with TV bands. The SMD-based integrated circuit further optimizes high-frequency performance, eliminating signal issues and ensuring smooth channel reception.

Specification:
- Antenna type: omnidirectional
- Operating mode: active
- VHF frequency range: 87.5–230 MHz
- UHF frequency range: 470–790 MHz
- Polarization: horizontal
- Gain: 30 dB
- LTE/5G filter: yes
- FM reception: no
- Impedance: 75 ohms
- Material: ABS
- Color: white

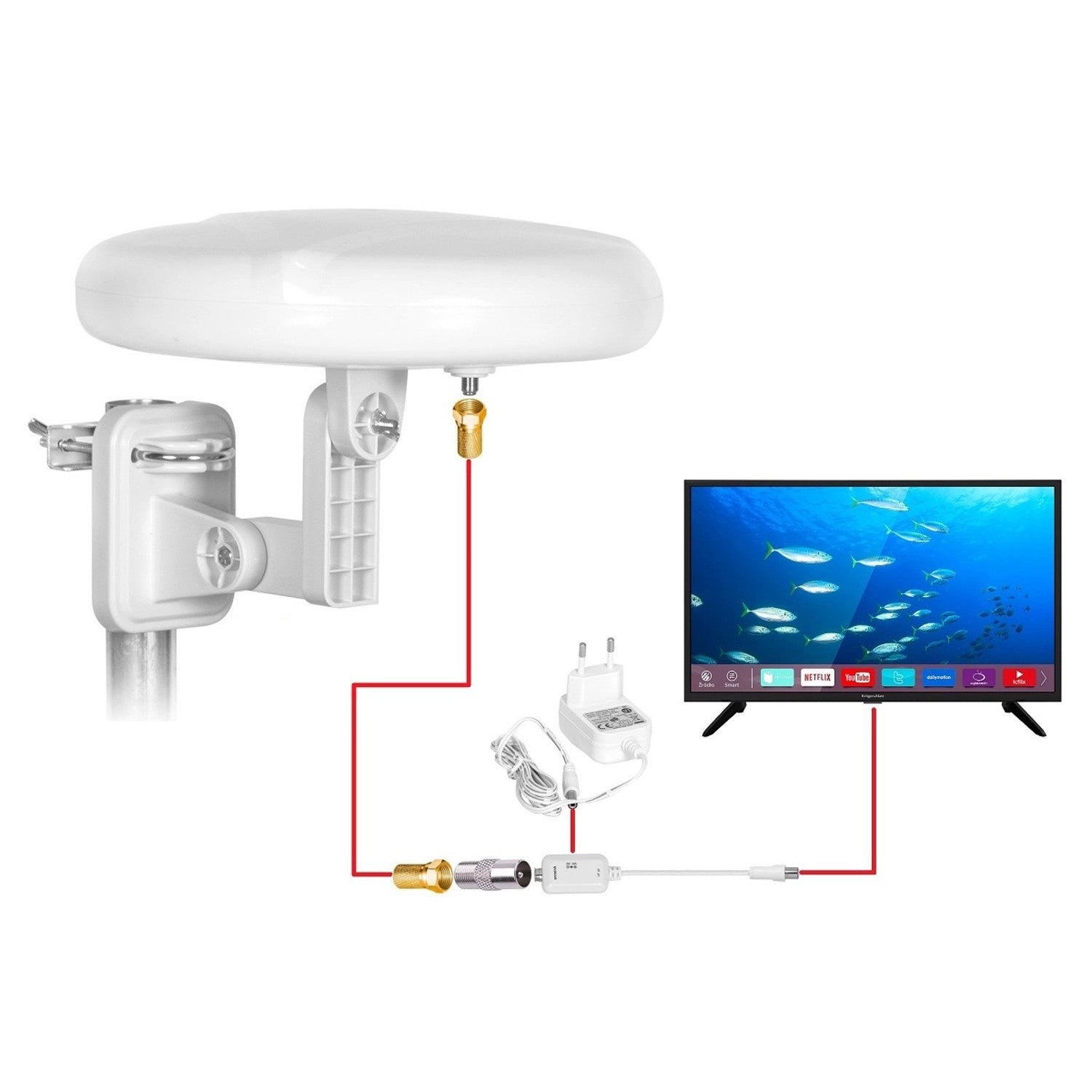

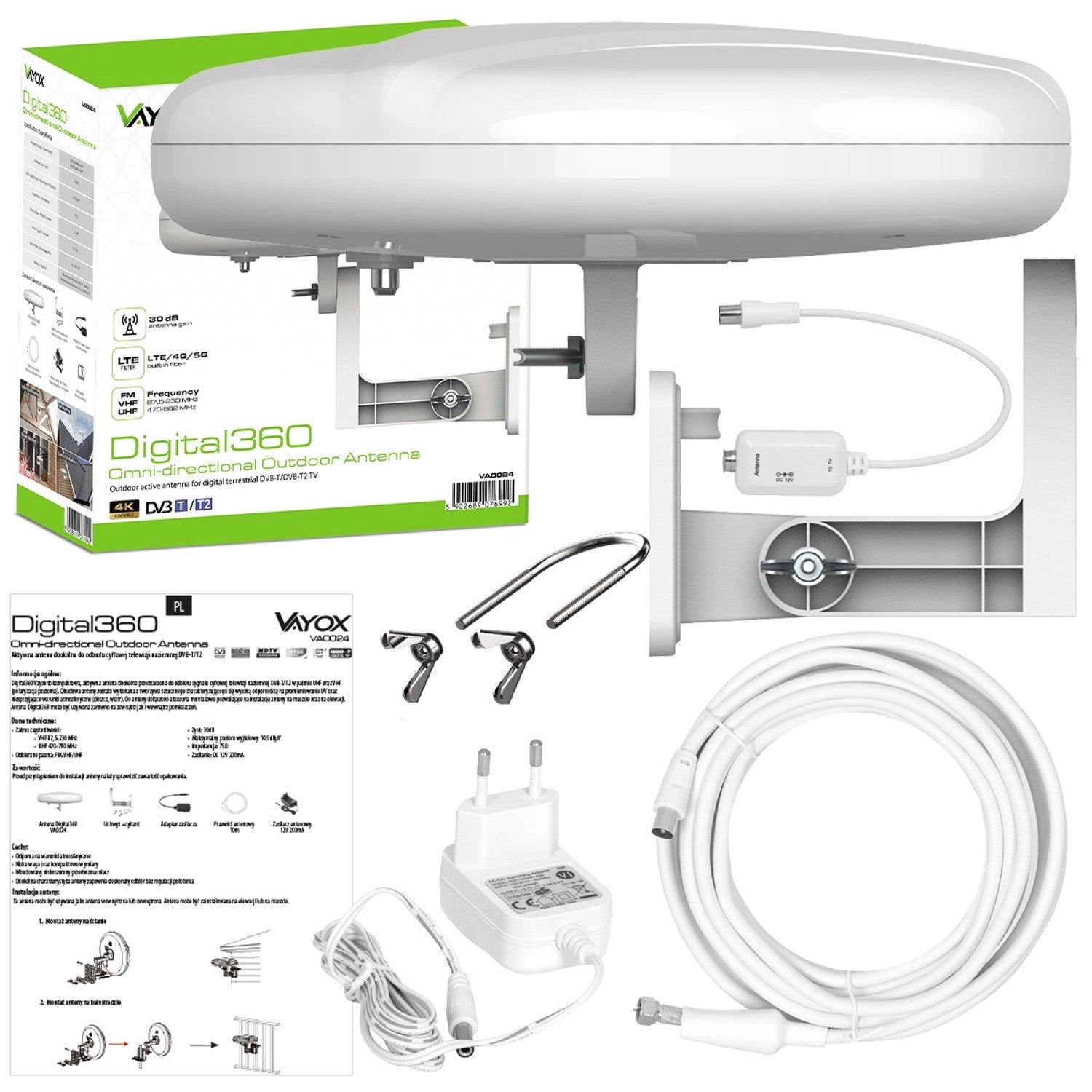

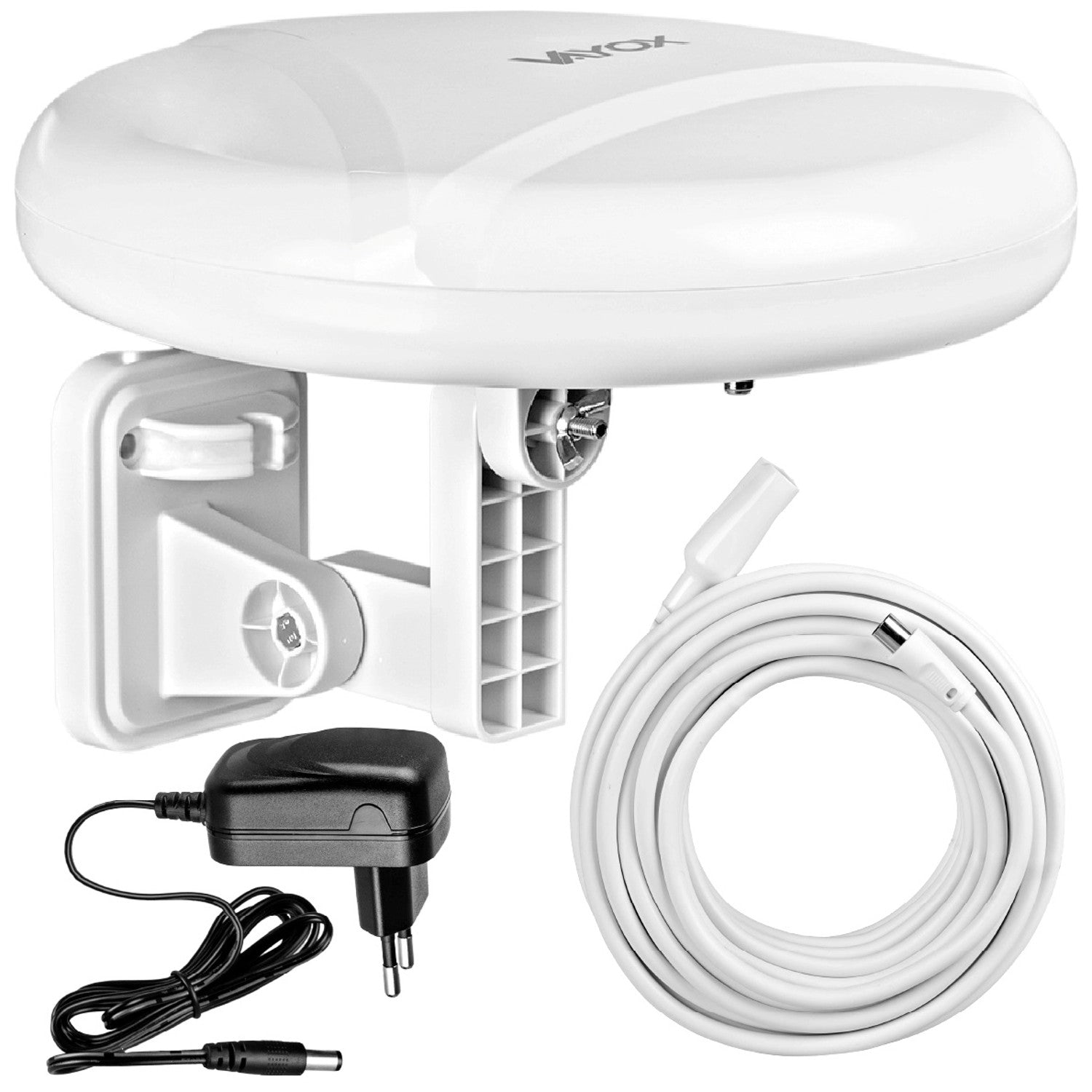

Set contains:
- VA0024 Digital360 Vayox Antenna
- 12V Antenna Power Supply
- Power Supply Adapter
- 10m Antenna Cable (F-type connector – antenna connector)
- Amplifier (built into the antenna)
- Mounting cable
- Wall mount
- Antenna installation manual
- Original packaging

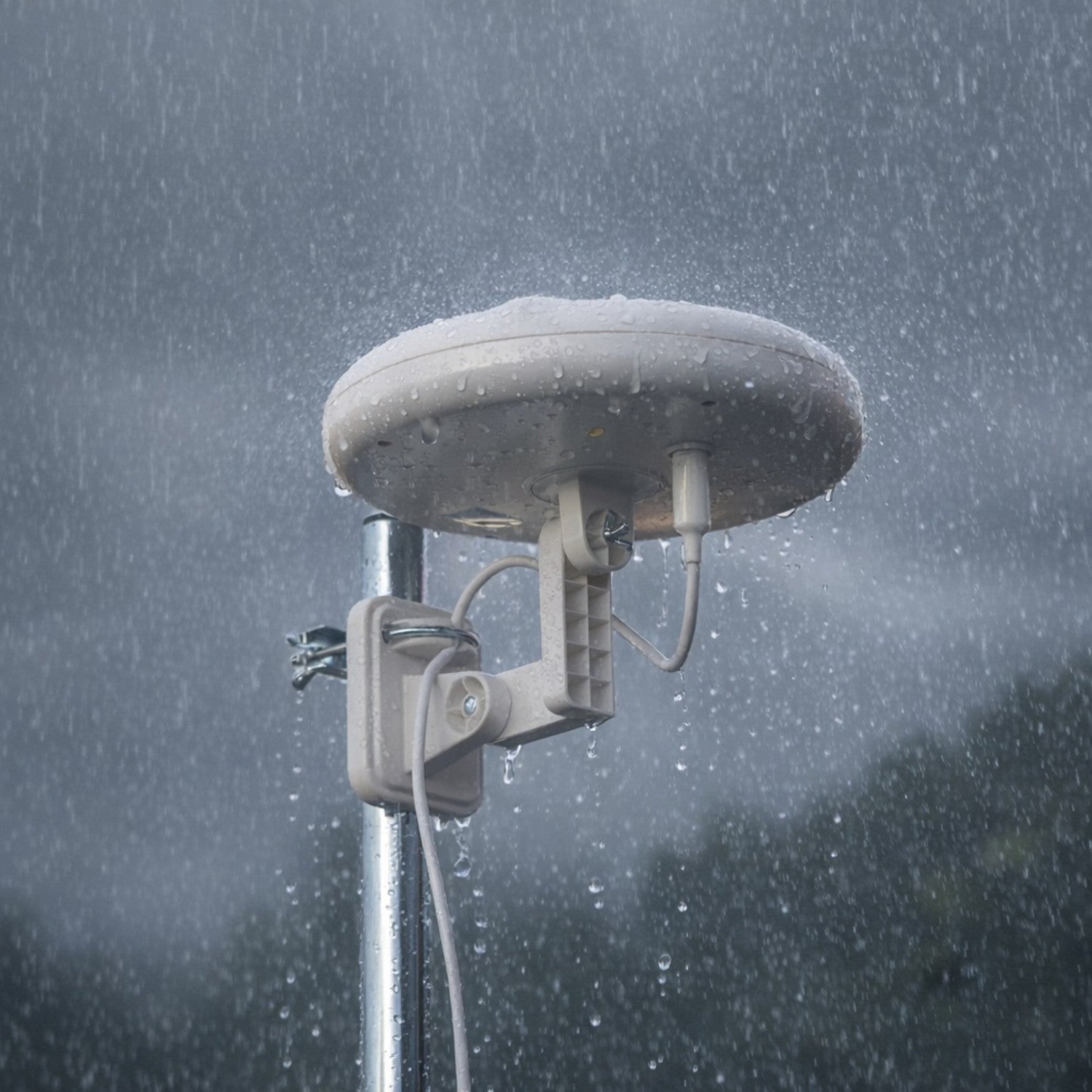

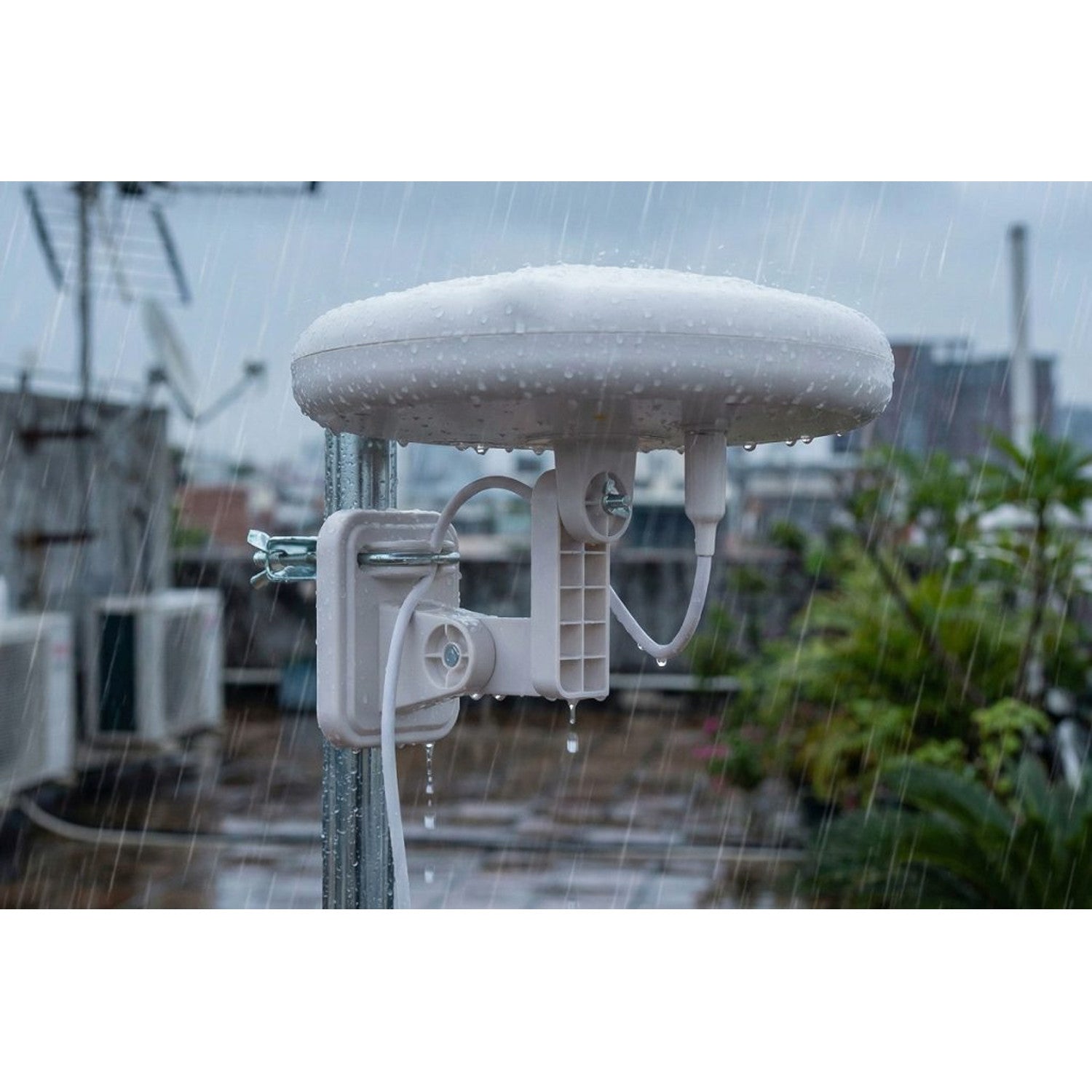

WATERPROOF ABS HOUSING

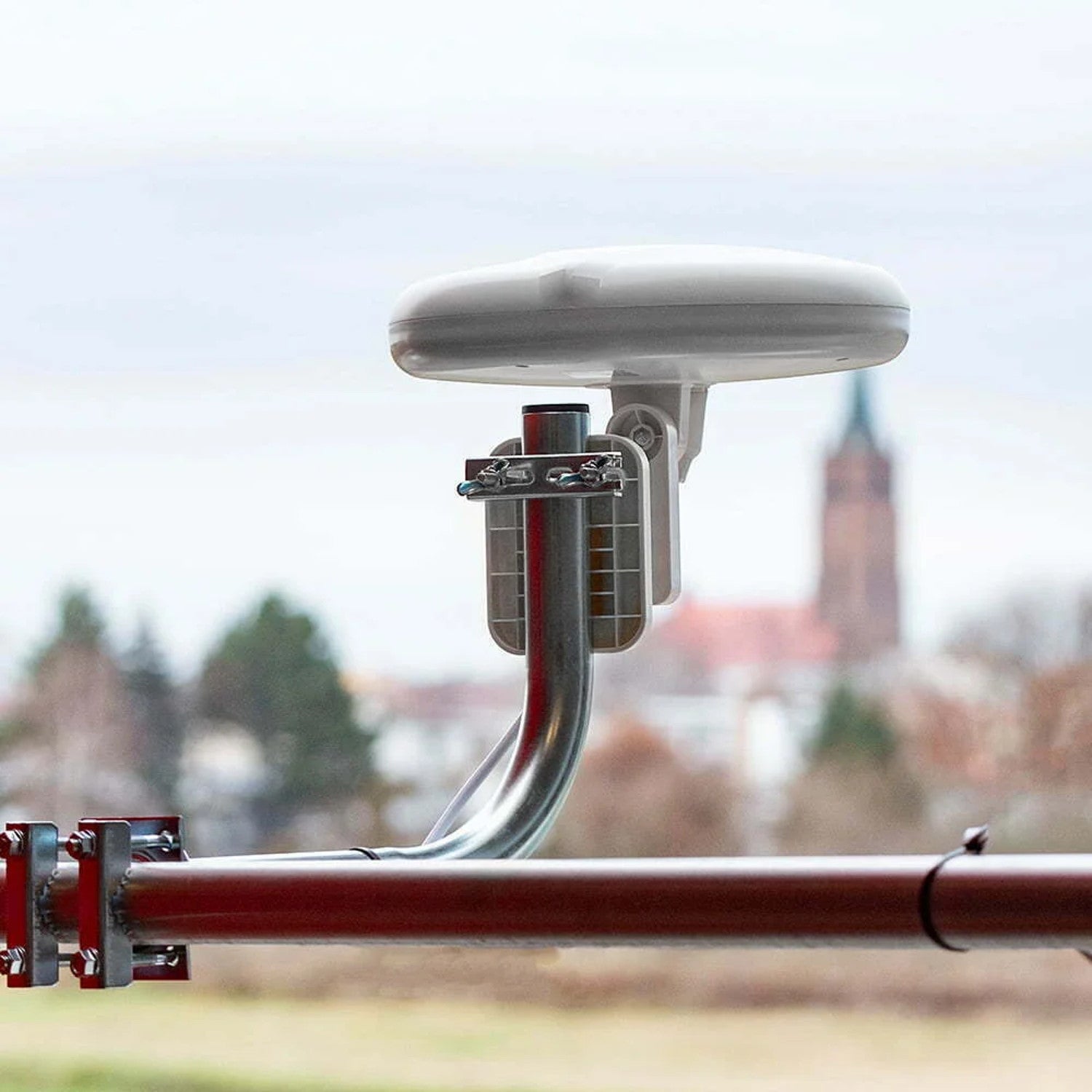

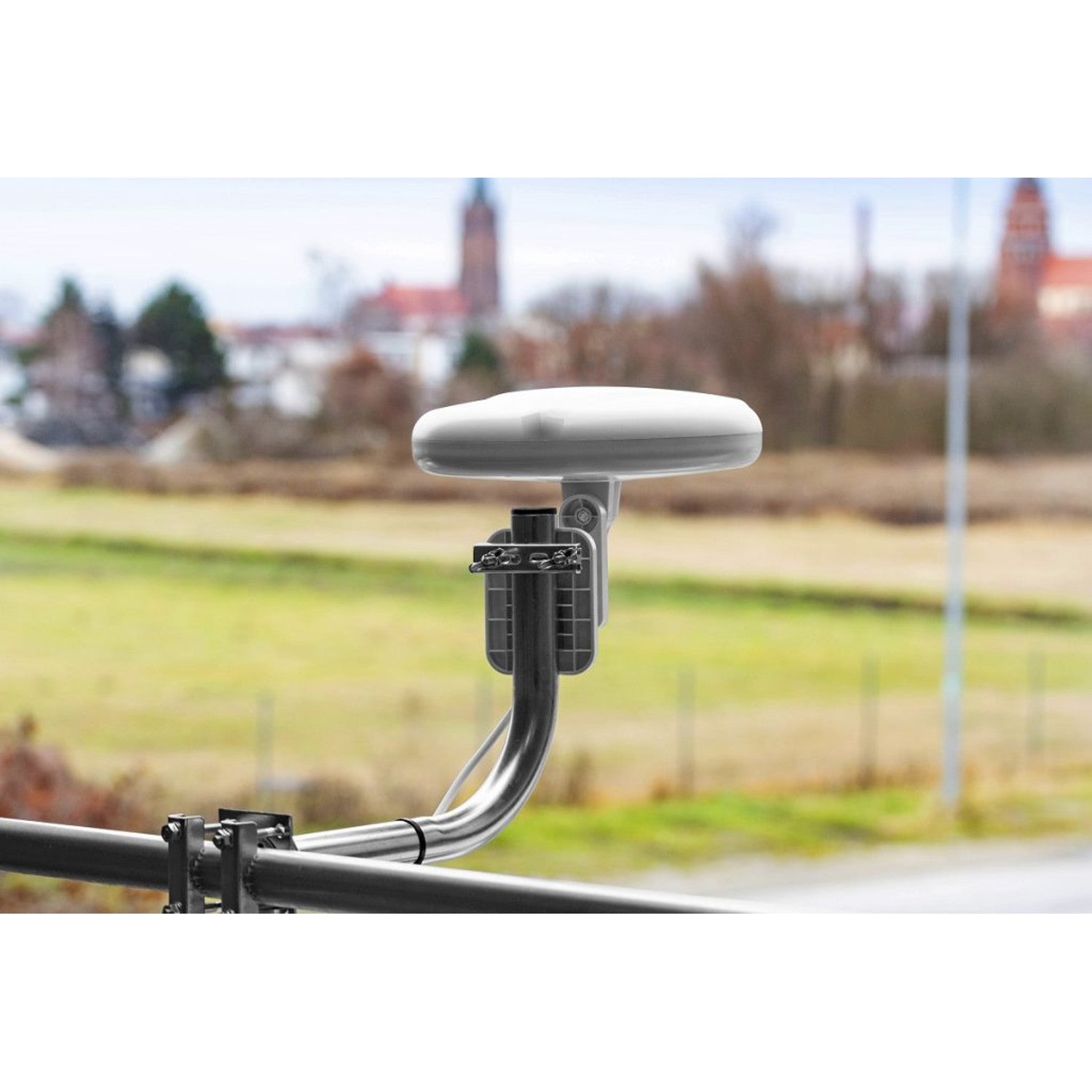

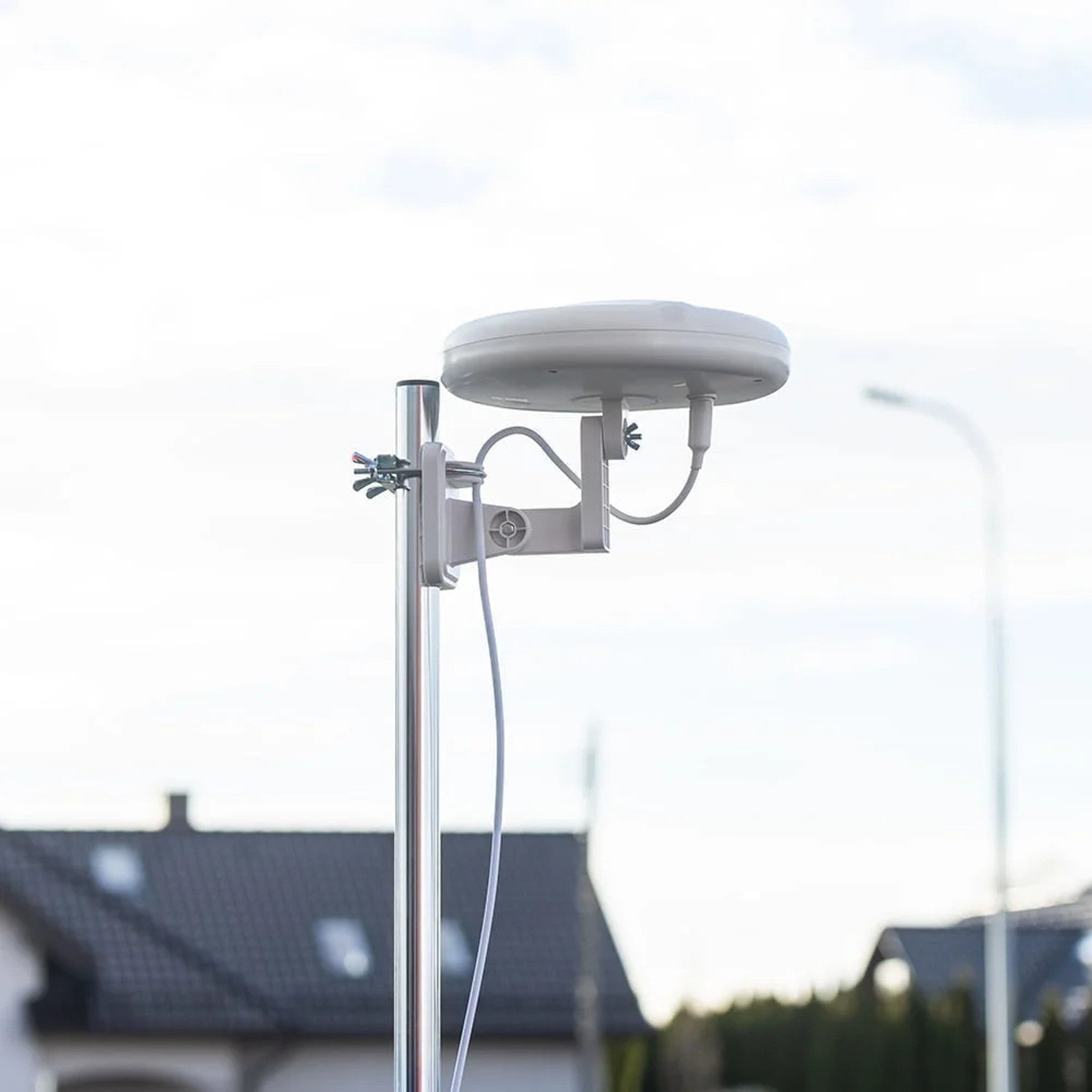

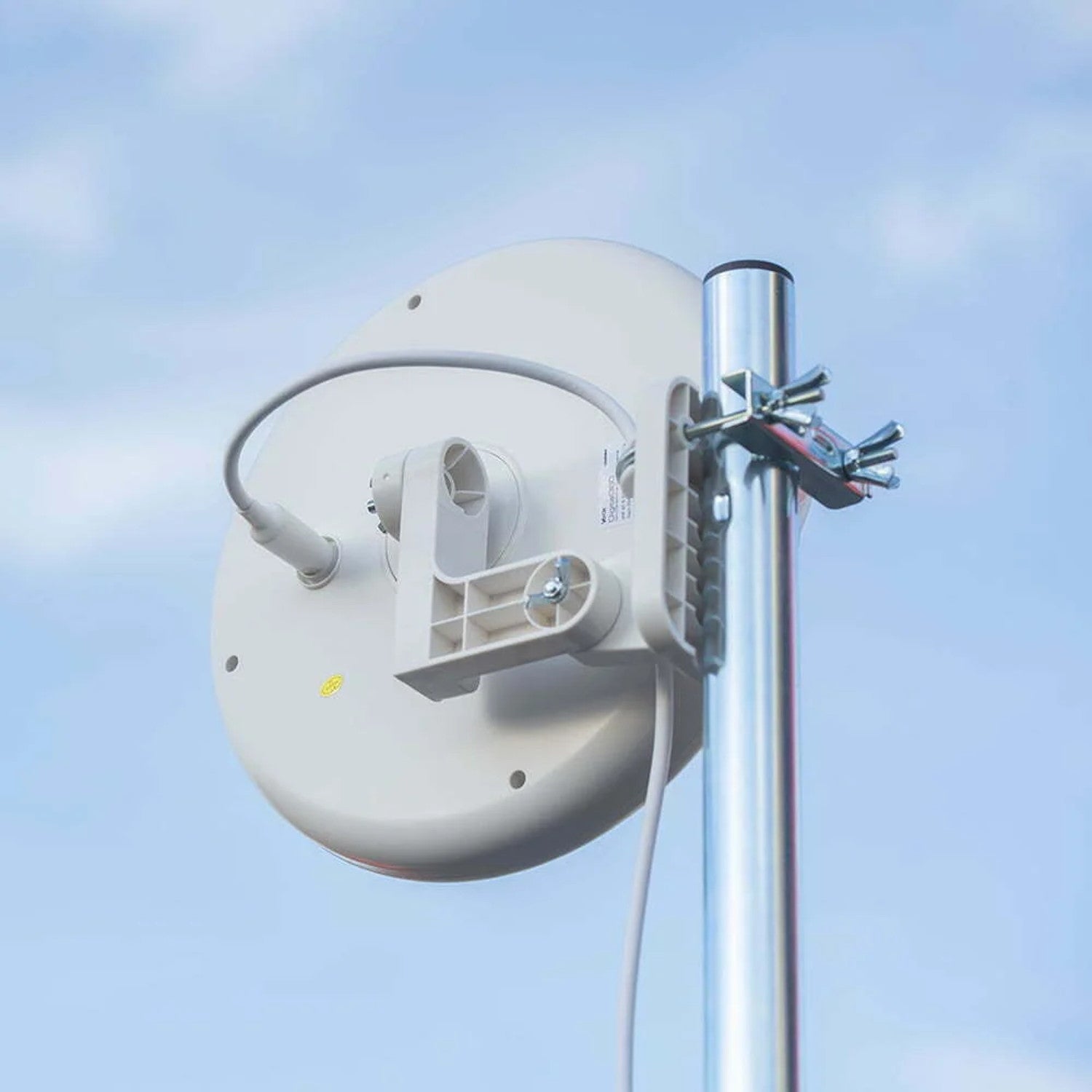

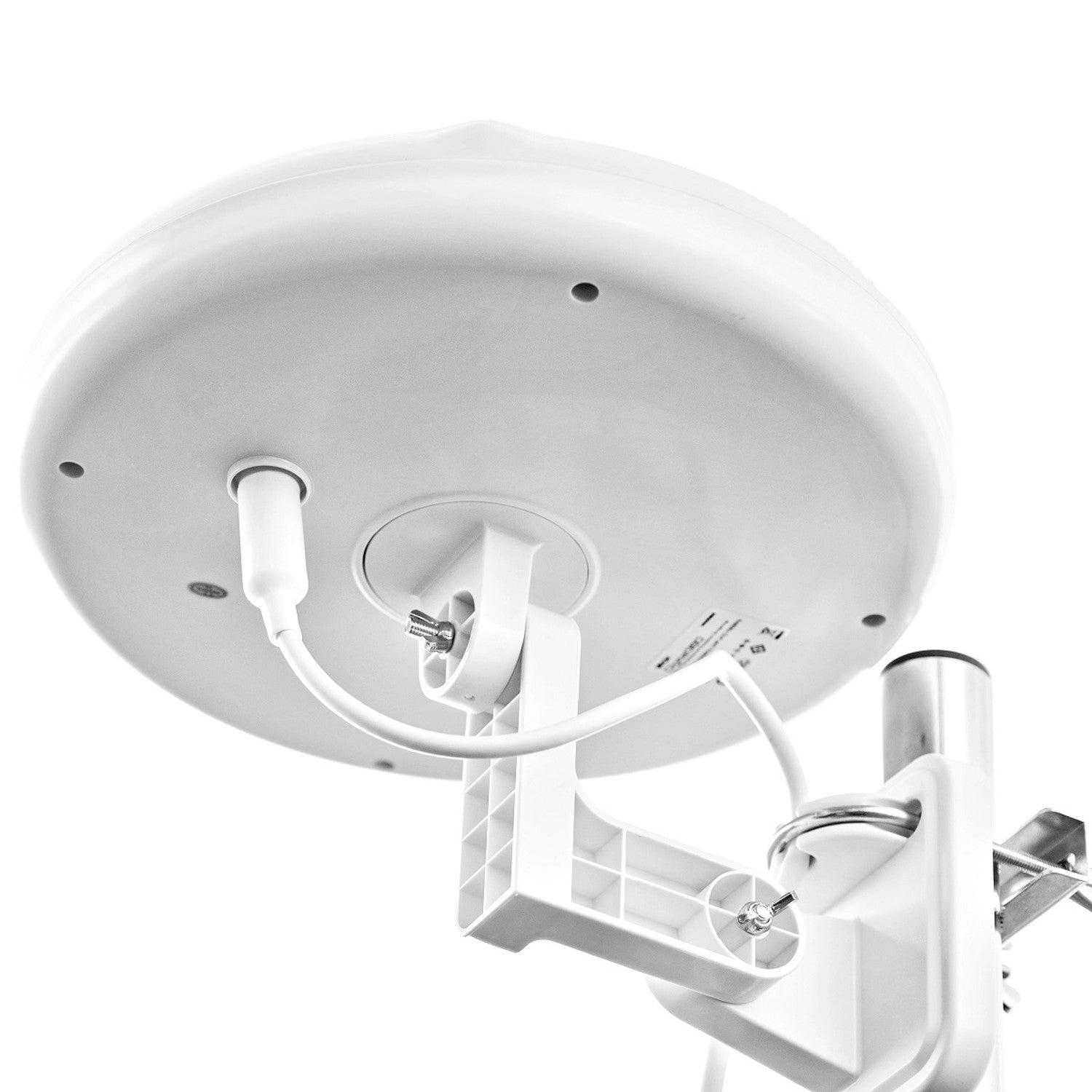

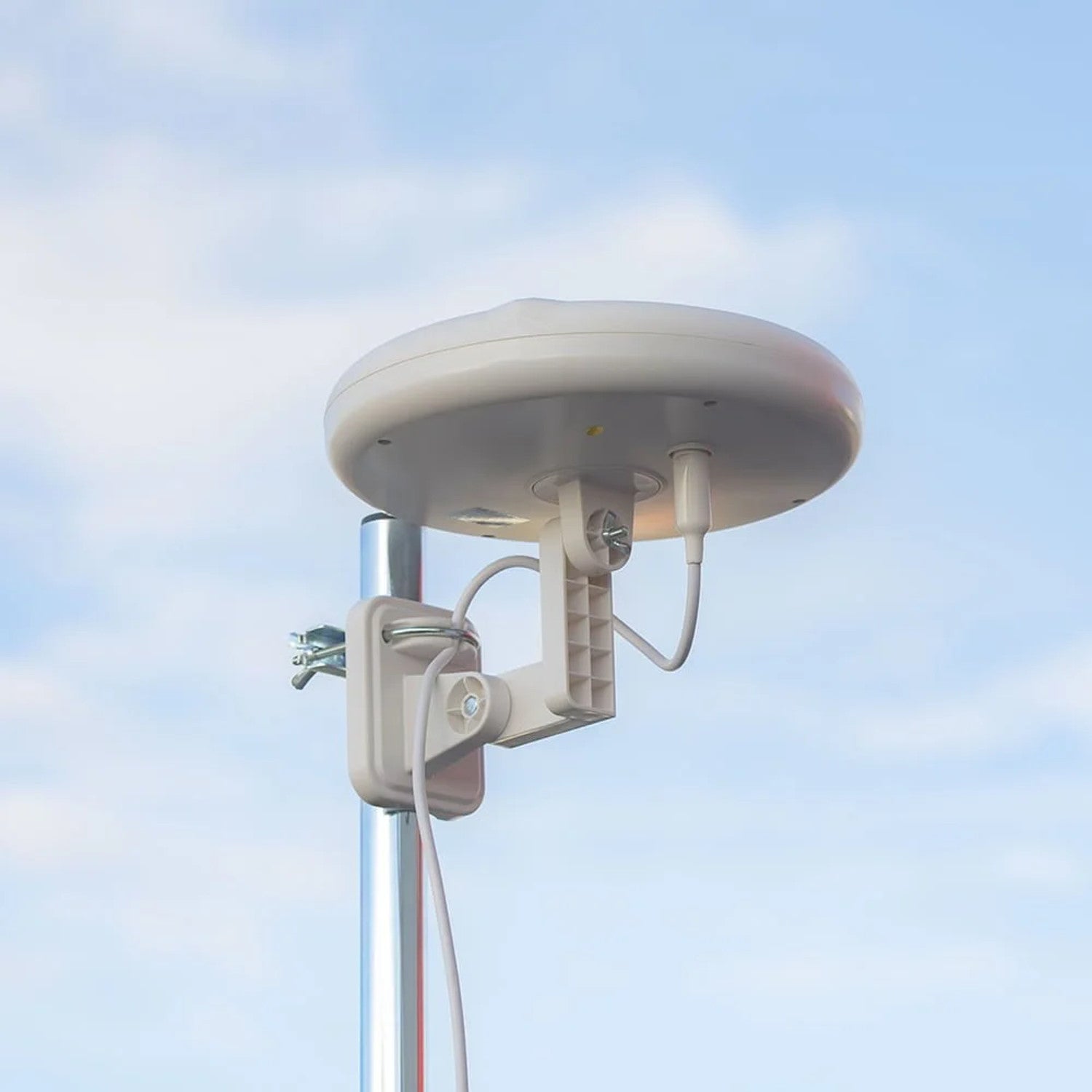

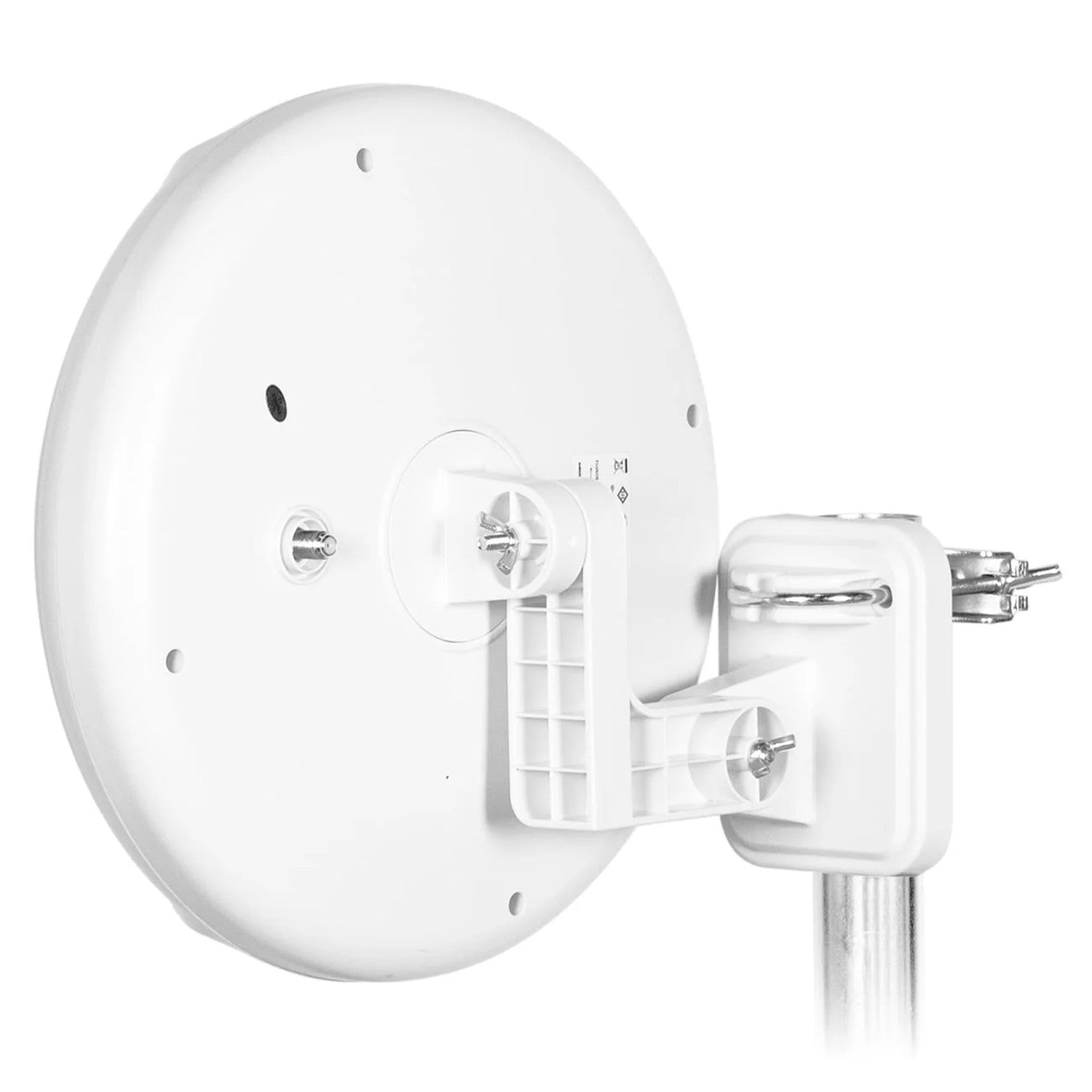

The antenna is enclosed in a sturdy, waterproof housing made of ABS plastic and coated with a UV-resistant finish. This makes it resistant to harsh weather conditions. Its compact design and versatile mounting system allow for installation on a wall, mast, or balcony railing. The included cable features a special cap that protects the connector from moisture.

- Receives signals from any direction within a 360-degree range
- Supports DVB-T/DVB-T2 digital standards, including MUX8
- Provides a reception range of up to 140 km from the broadcast station
- Built-in digital amplifier with a gain of 30 dB
- Designed to receive frequencies in the VHF and UHF bands
- LTE anti-interference filter
- Waterproof ABS plastic housing
