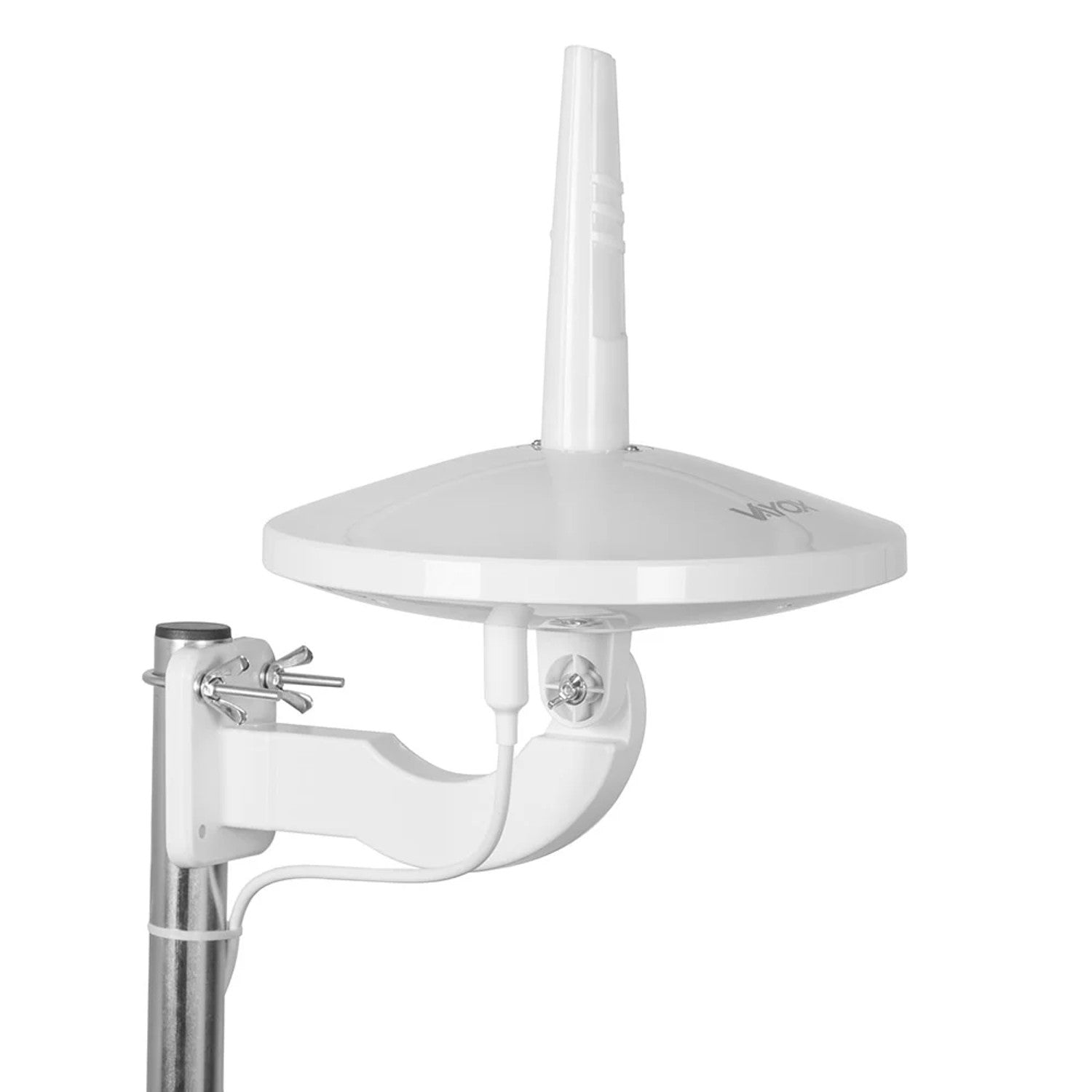

Digital720 Combo White DVB-T/T2 Omnidirectional Antenna VA0066 Vayox

Digital720 Omnidirectional Antenna for DVB-T2 Terrestrial TV

RECEPTION OF ALL MULTIPLEXES
The Digital720combo model is an advanced combo-type design equipped with an additional vertical dipole. Thanks to this design, the antenna effectively receives the MUX8 signal in both polarizations (vertical and horizontal). It is an omnidirectional antenna that picks up signals from 360 degrees, eliminating the need for precise alignment with the transmitter. The device supports DVB-T2 HEVC standards and 4K resolution, offering a range of up to 140 km from the broadcast station.
AUTOMATIC POWER CONTROL

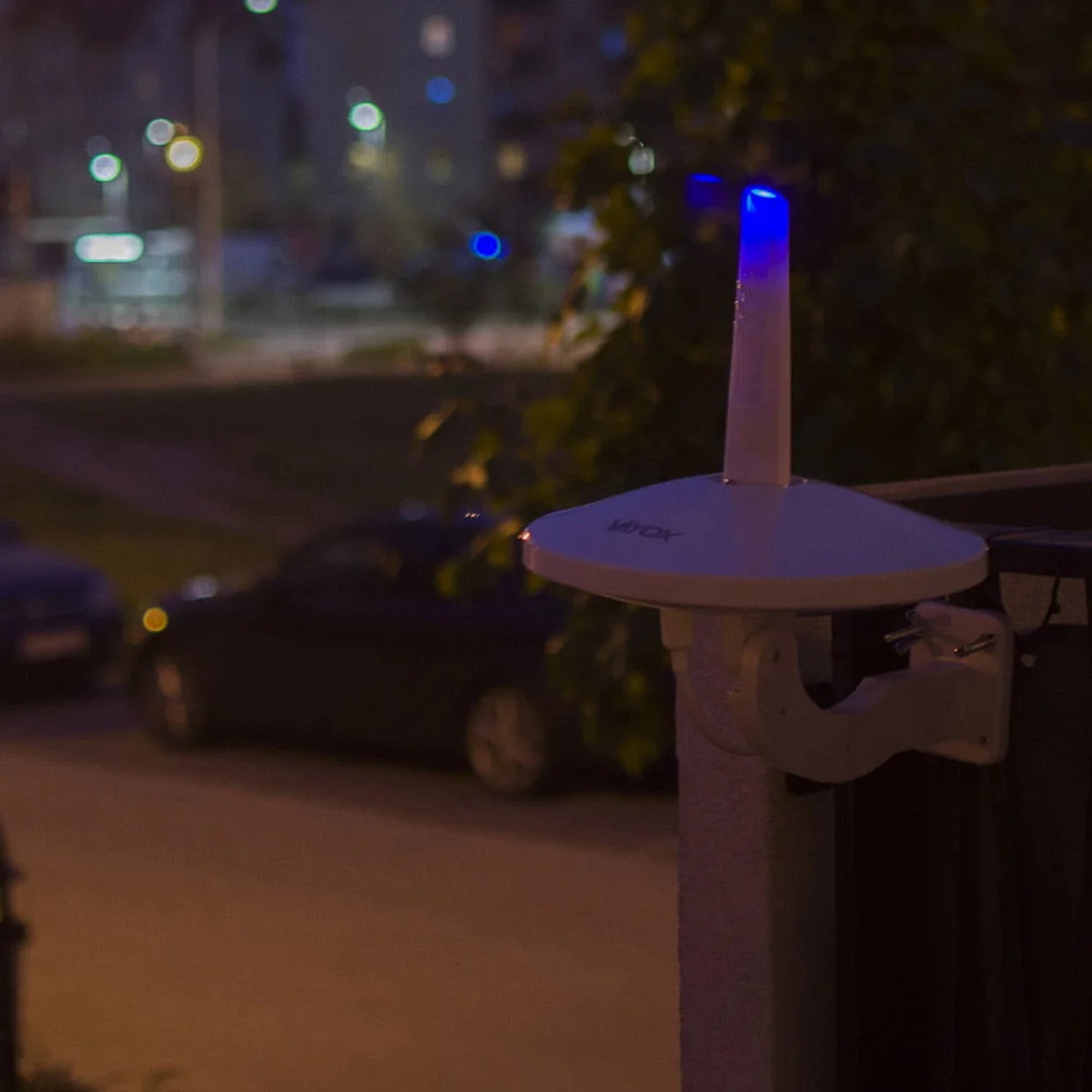

At the heart of the device is an intelligent digital amplifier that automatically adjusts the gain level as needed, reaching a maximum of 28 dB. The circuit analyzes reception conditions for the VHF and UHF bands, maintaining a low level of inherent noise (<3 dB). A built-in blue LED indicates that the amplifier and the entire system are operating properly. The maximum signal output level is as high as 100 dBuV.

EFFECTIVE INTERFERENCE ELIMINATION
To ensure uninterrupted TV reception, the antenna is equipped with an integrated LTE filter. Its purpose is to strongly attenuate signals from GSM cellular networks and 4G networks that may overlap with television frequencies. The SMD-based integrated circuit used guarantees better performance at high frequencies, resulting in a stable picture free of artifacts and band-overlap issues.

Specification:
- Design type: omnidirectional
- Operating mode: active
- VHF frequency range: 87.5–230 MHz
- UHF frequency range: 470–790 MHz
- Polarization: combo (horizontal and vertical)
- Gain: 28 dB
- LTE/5G filter: yes
- FM reception: no
- Impedance: 75 ohms
- Material: ABS
- Color: white

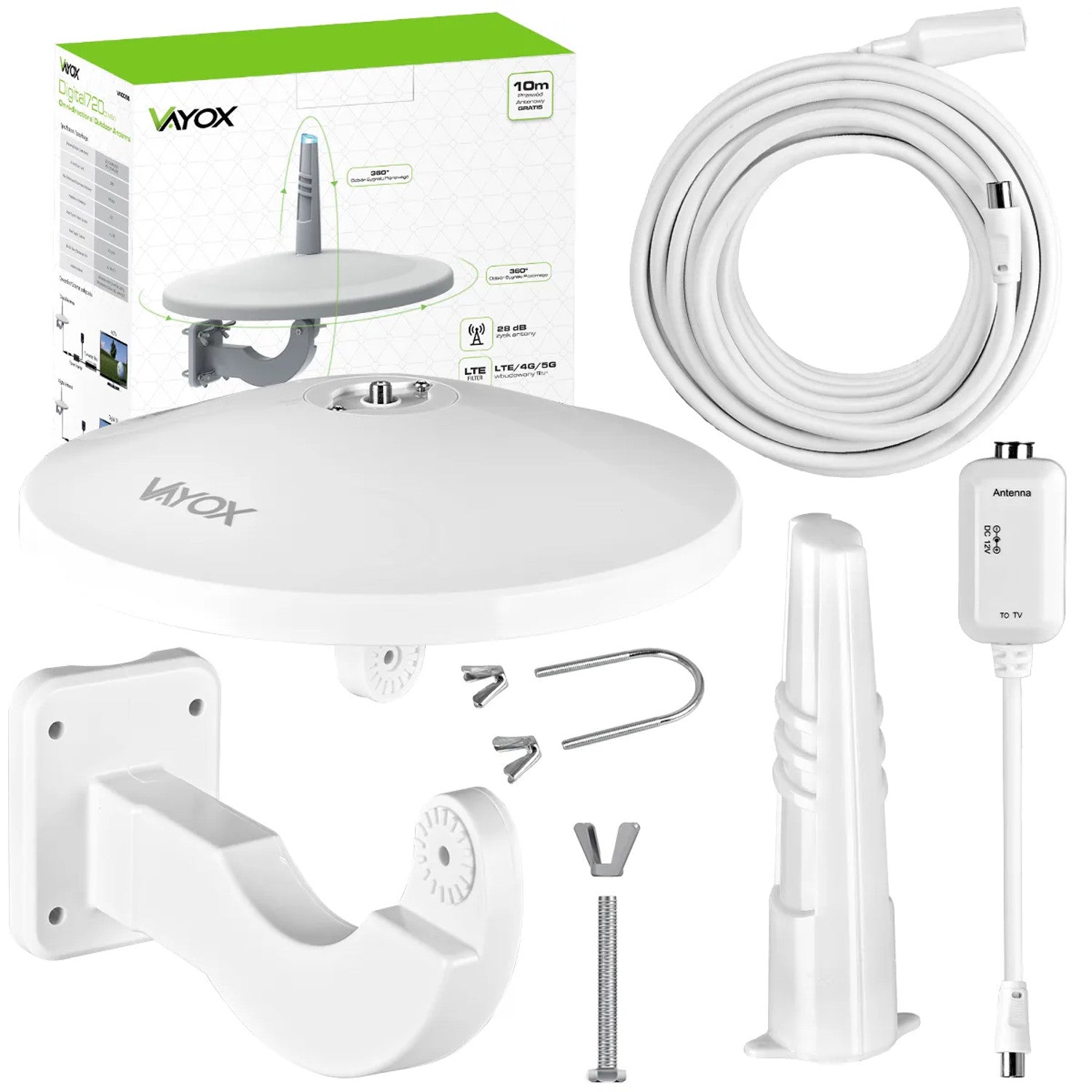

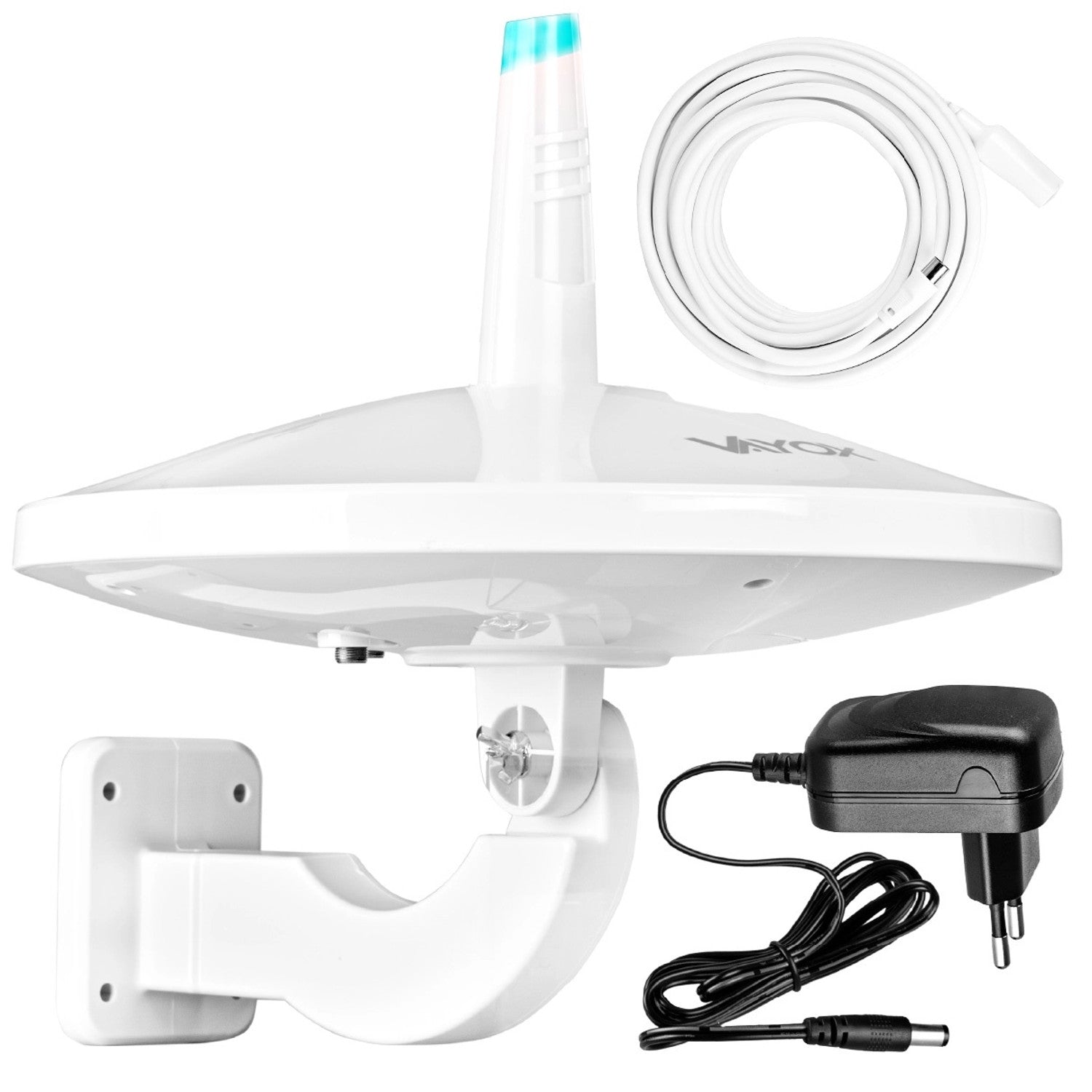

Set contains:
- VA0066 Digital720combo Vayox Antenna

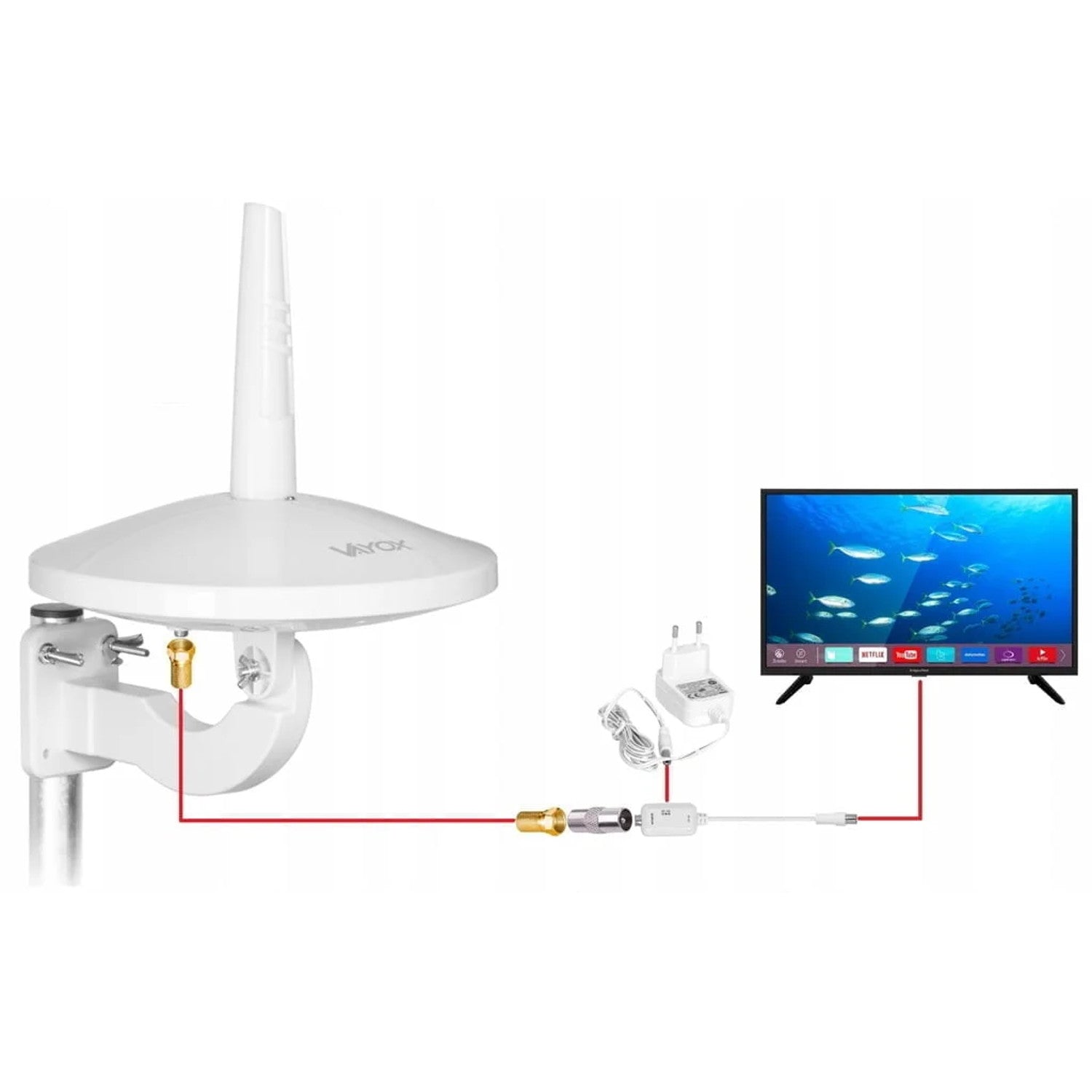

- 12V Antenna Power Supply
- Power Supply Adapter
- 10m Antenna Cable (F-type plug – antenna plug)
- Digital amplifier (built into the antenna)
- Mounting cable
- Wall mount
- Antenna installation manual
- Original packaging

STURDY CONSTRUCTION AND EASY INSTALLATION

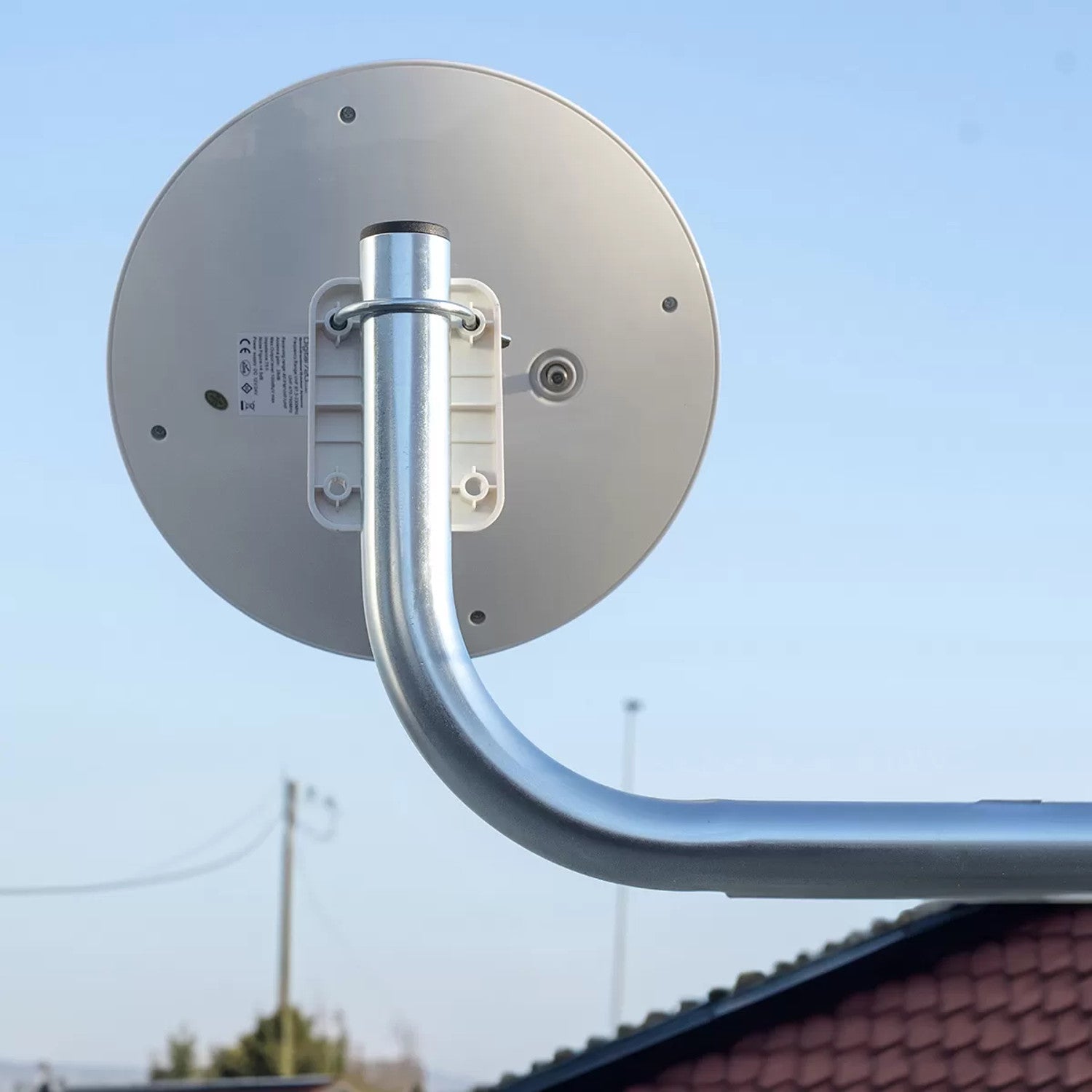

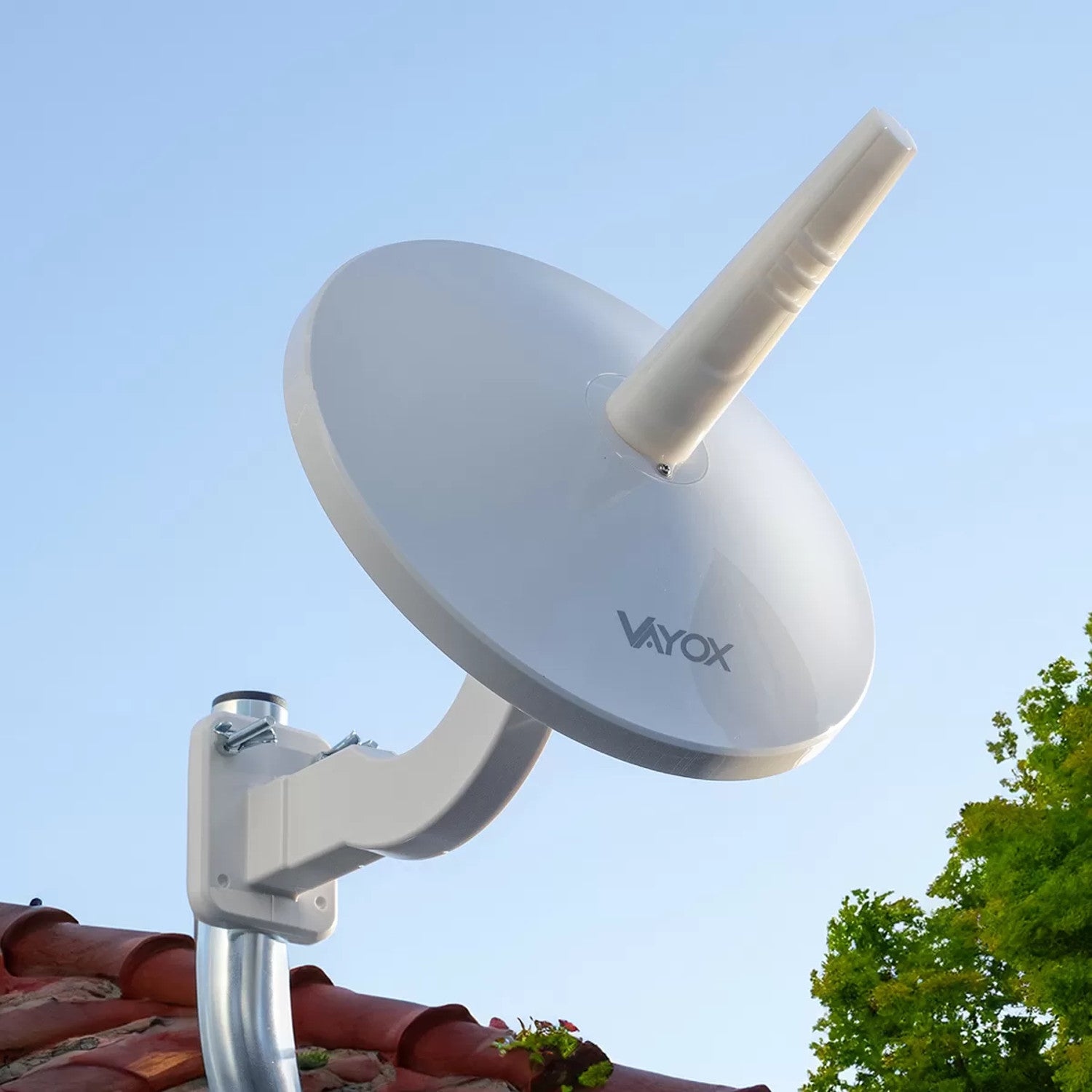

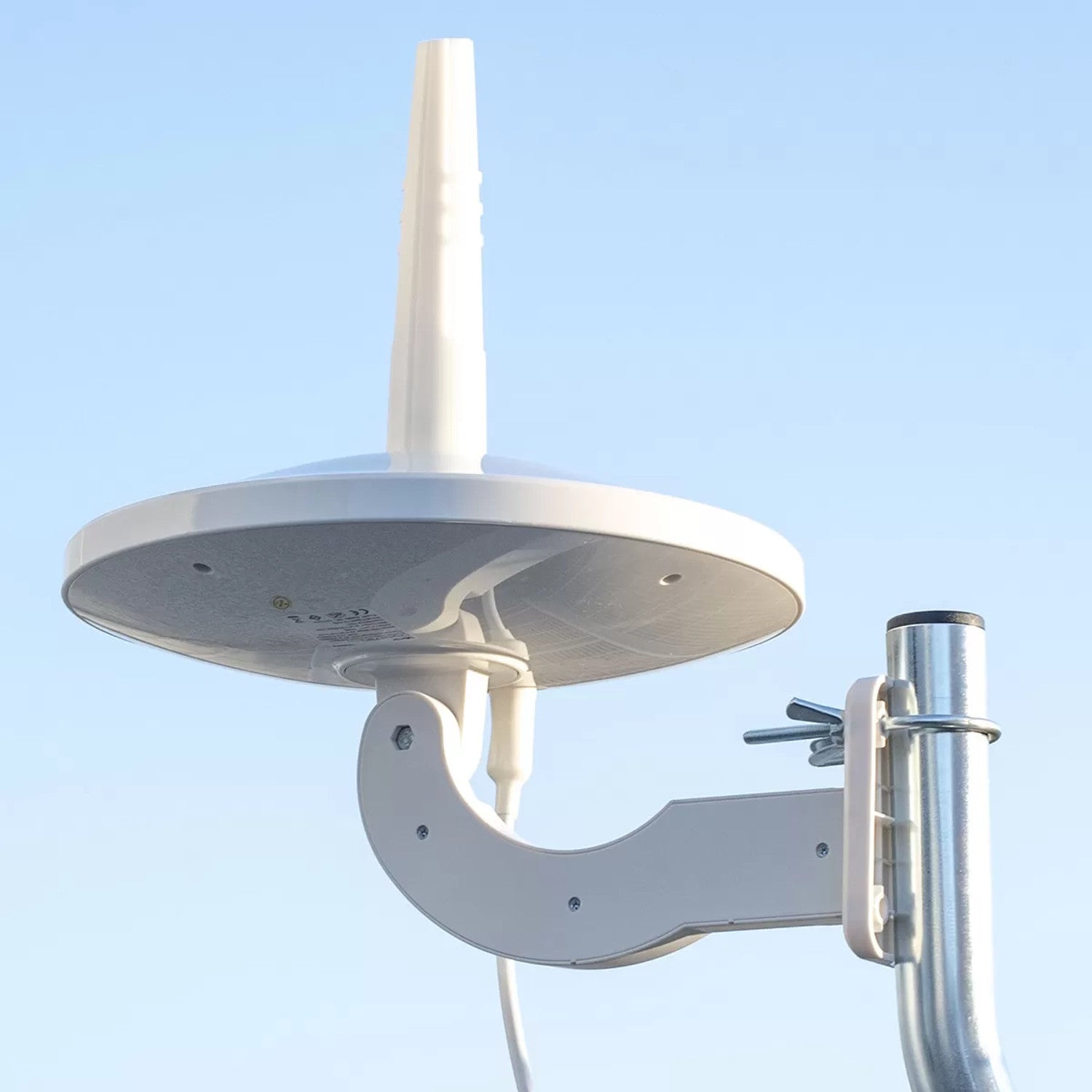

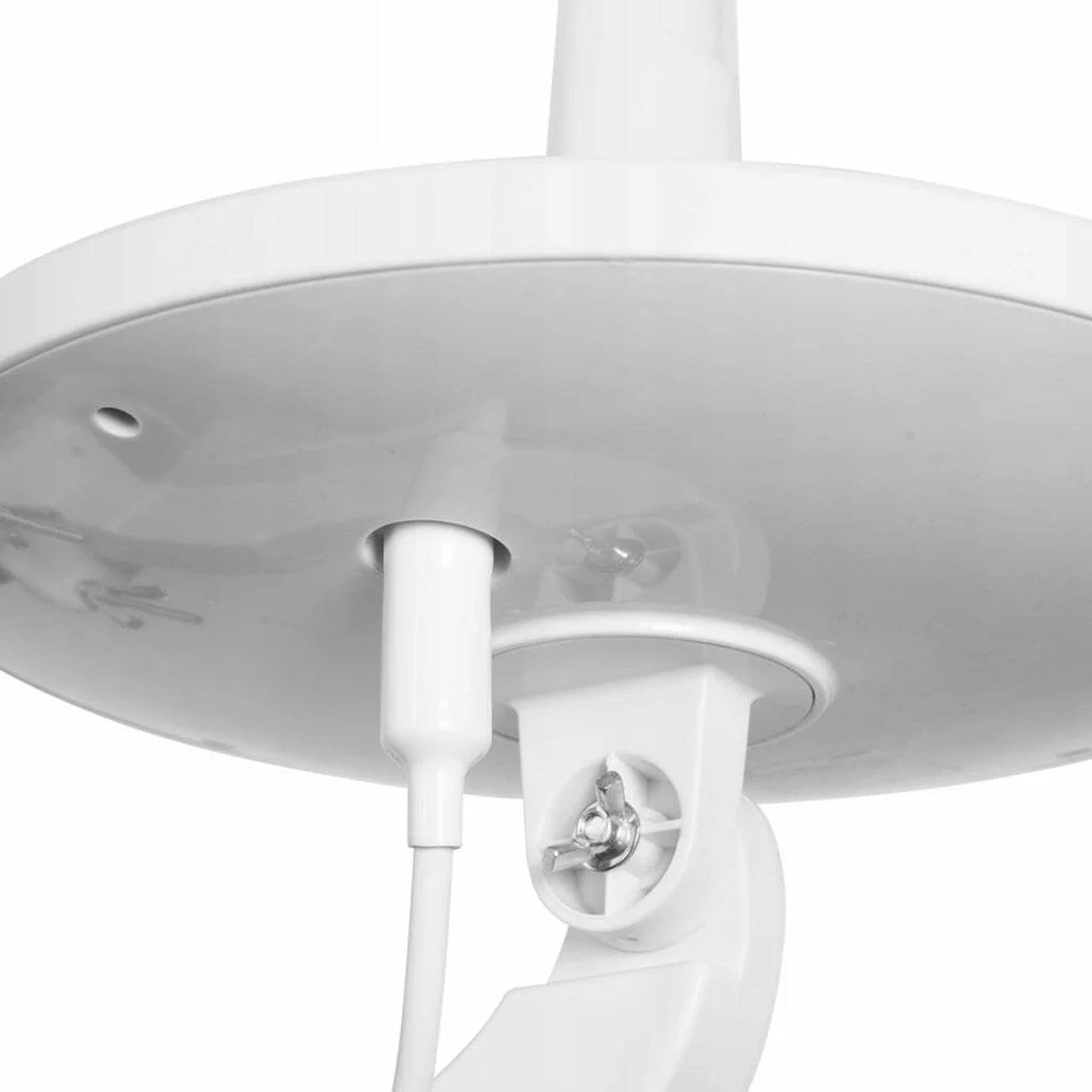

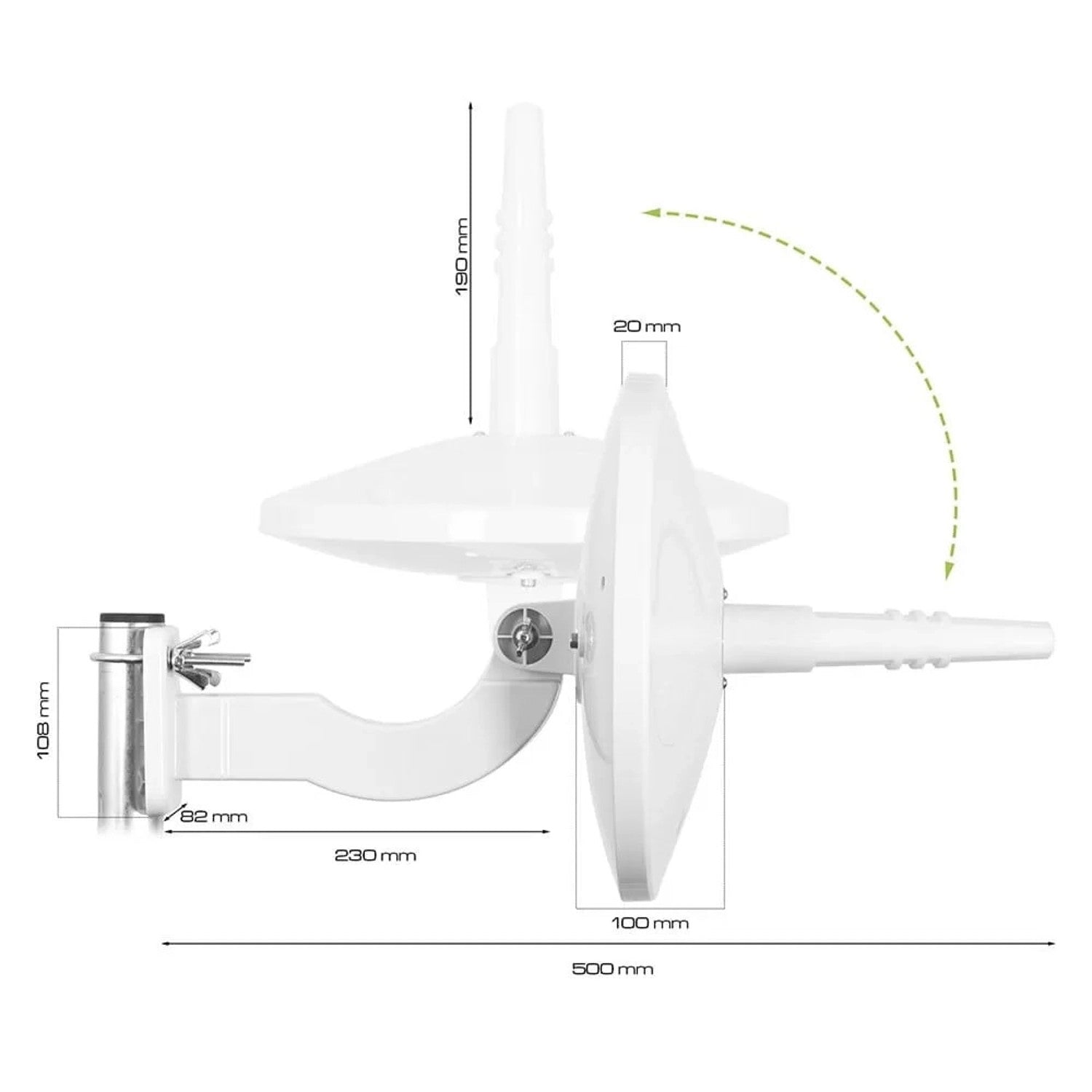

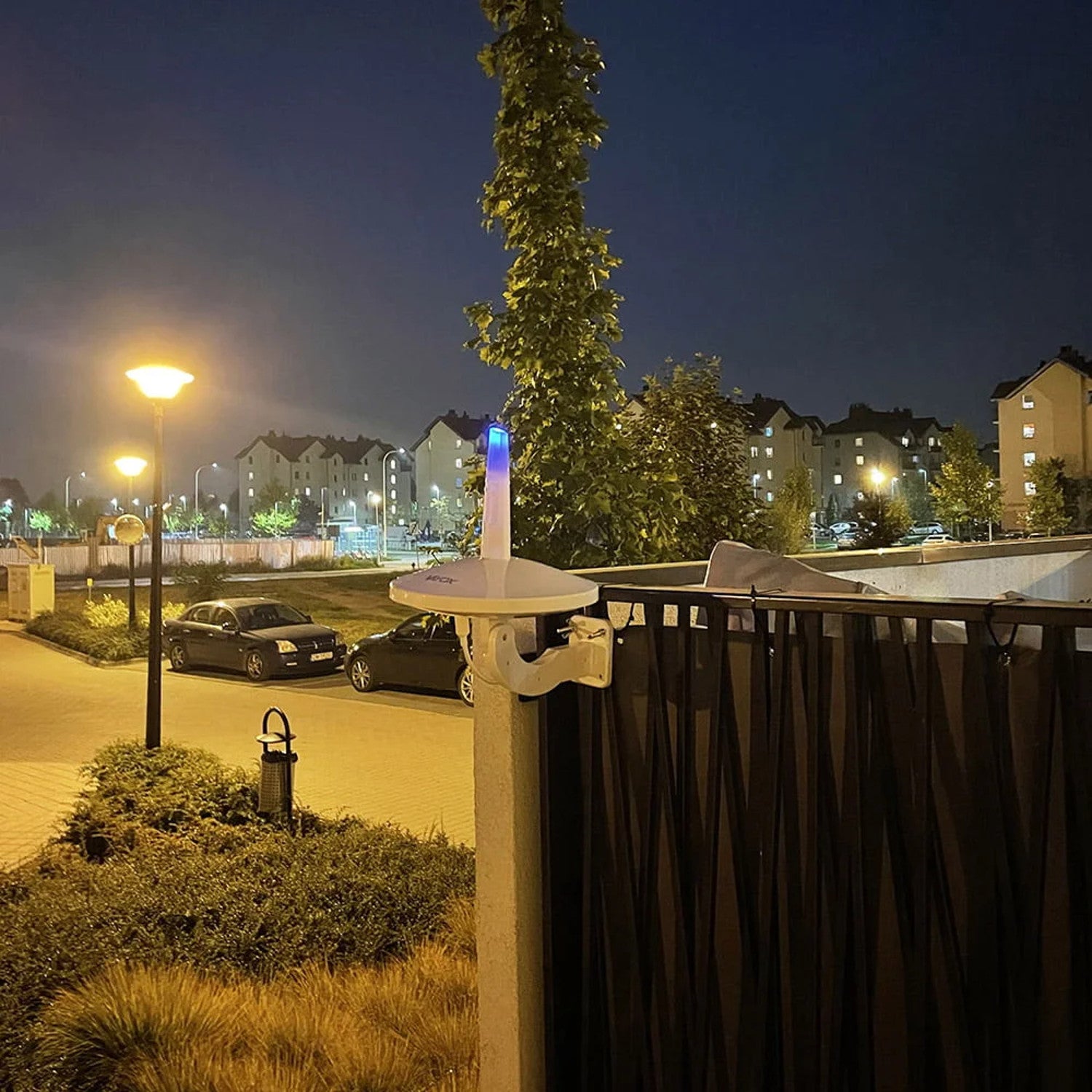

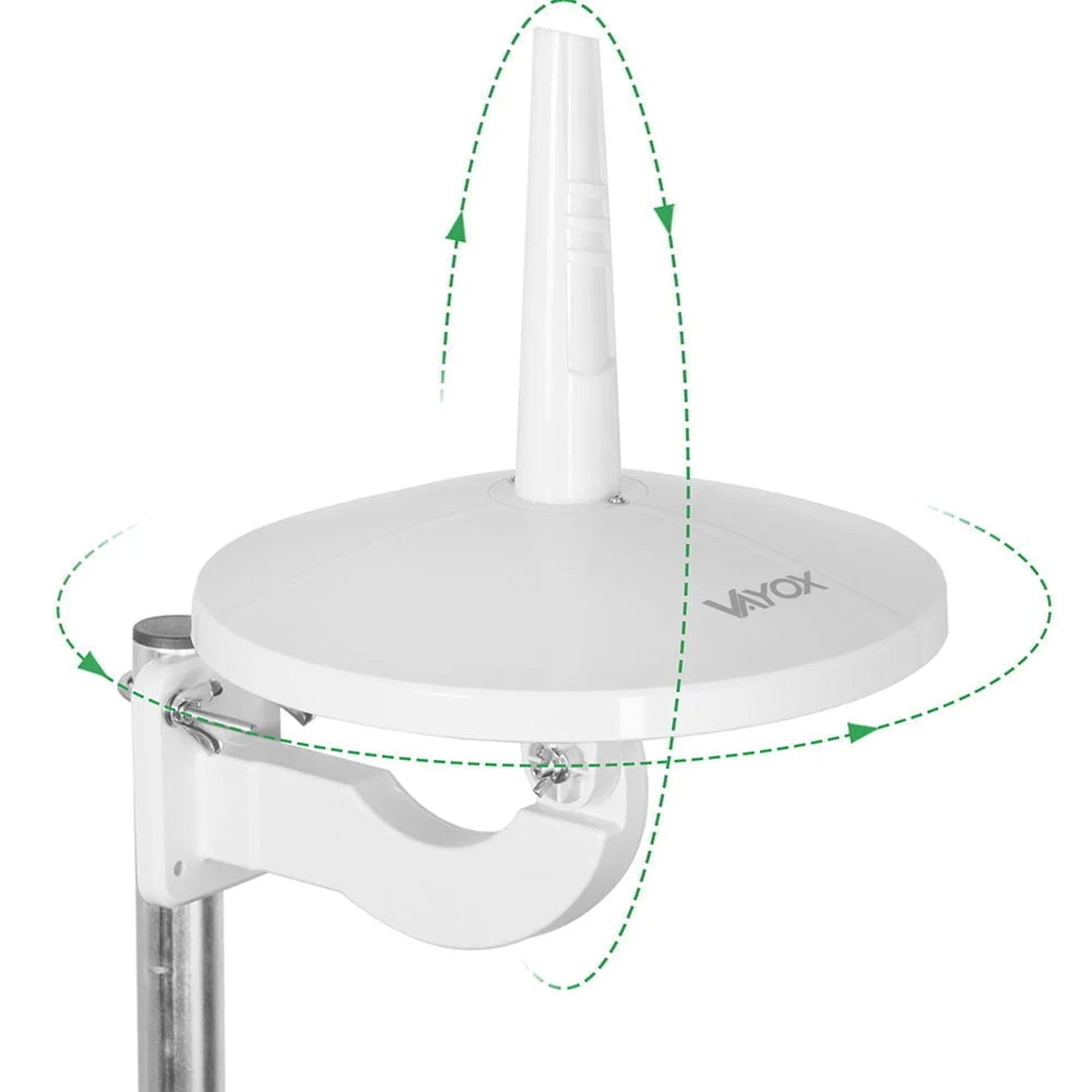

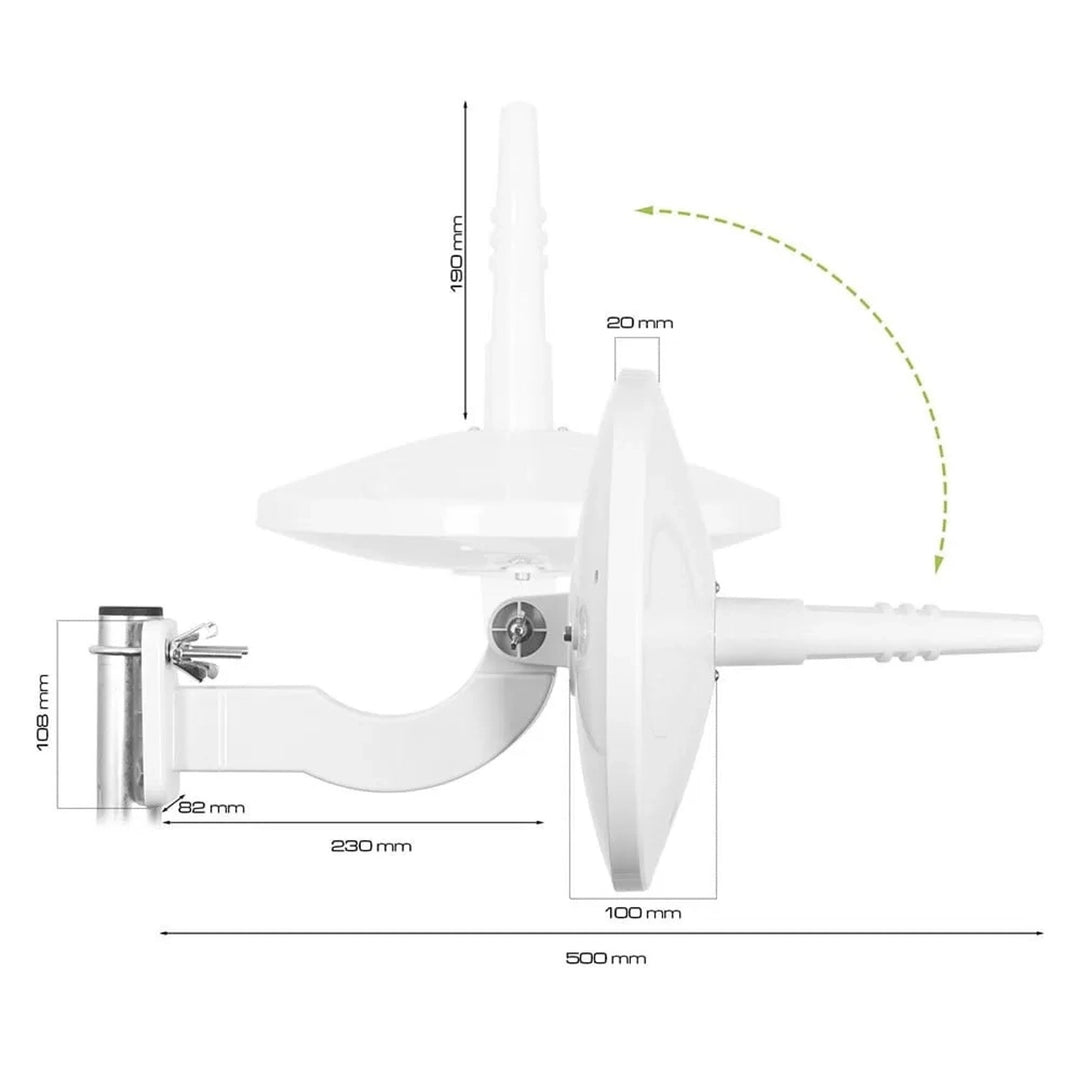

The 30-cm-diameter antenna features a sealed, waterproof housing made of durable ABS, coated with a UV-protective finish. The mounting kit allows for installation on a building wall, mast, or balcony railing without the need for complicated tools. The adjustable mount allows for 180-degree rotation, and the included cable has a special cap that protects the F-connector from moisture.

- Receives signals from any direction within a 360-degree range
- Advanced combo design, equipped with an additional vertical dipole
- Supports DVB-T2 HEVC standards and 4K resolution
- Provides a reception range of up to 140 km from the broadcast station
- An intelligent digital amplifier automatically adjusts the gain level as needed
- LTE anti-interference filter
- Waterproof ABS plastic housing
